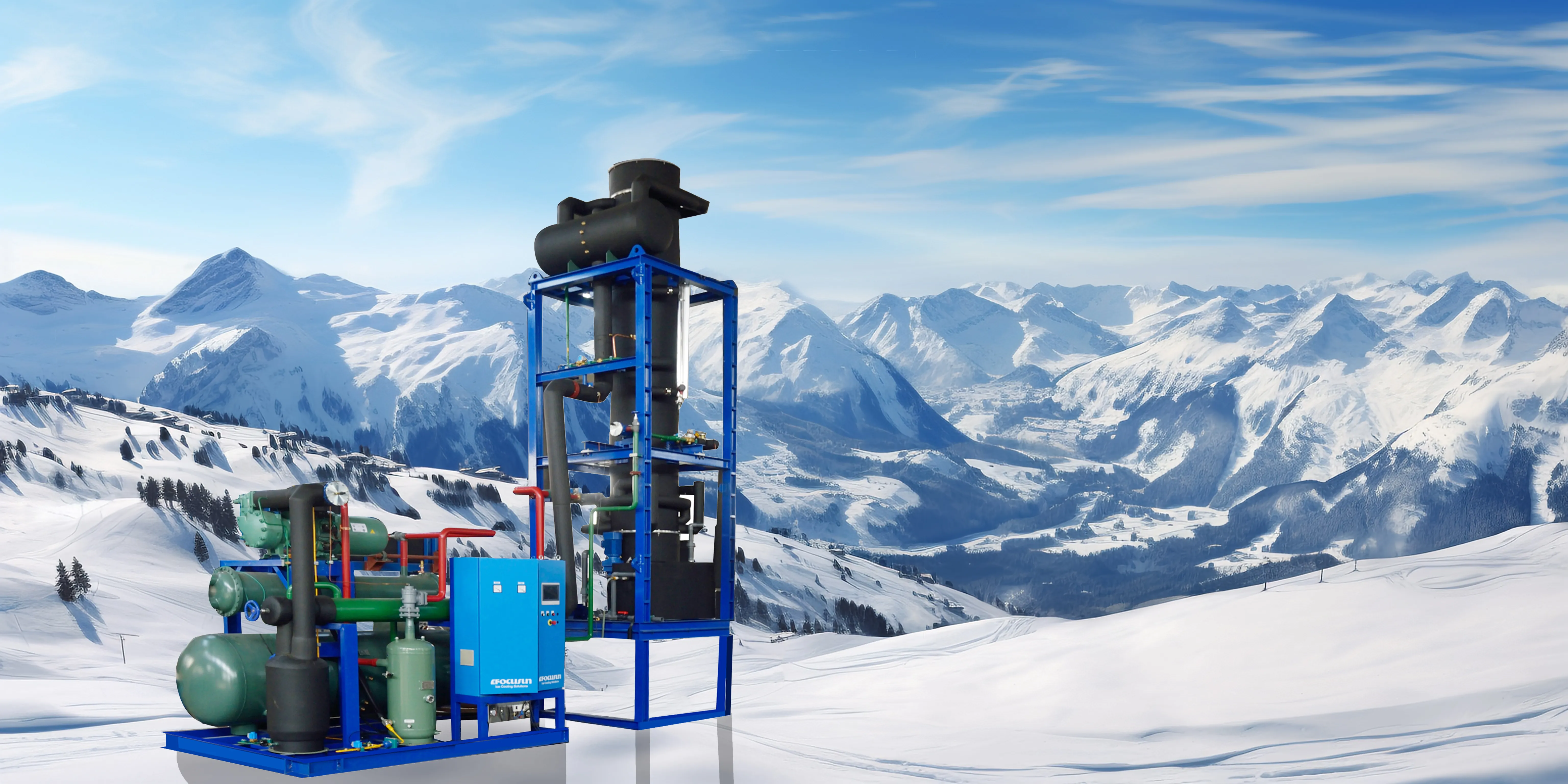

Automatic Tube Ice Maker

Tube ice machine

is a kind of ice maker, which is named because the shape of the ice tube produced is a hollow tube of irregular length. The outer diameter of the tube ice is divided into φ22mm, φ28mm, φ35mm, φ38mm and length ranges from 30 to 60mm. The diameter of the inner hole in the middle can be adjusted according to the time of ice making and generally between φ5 to 10mm.

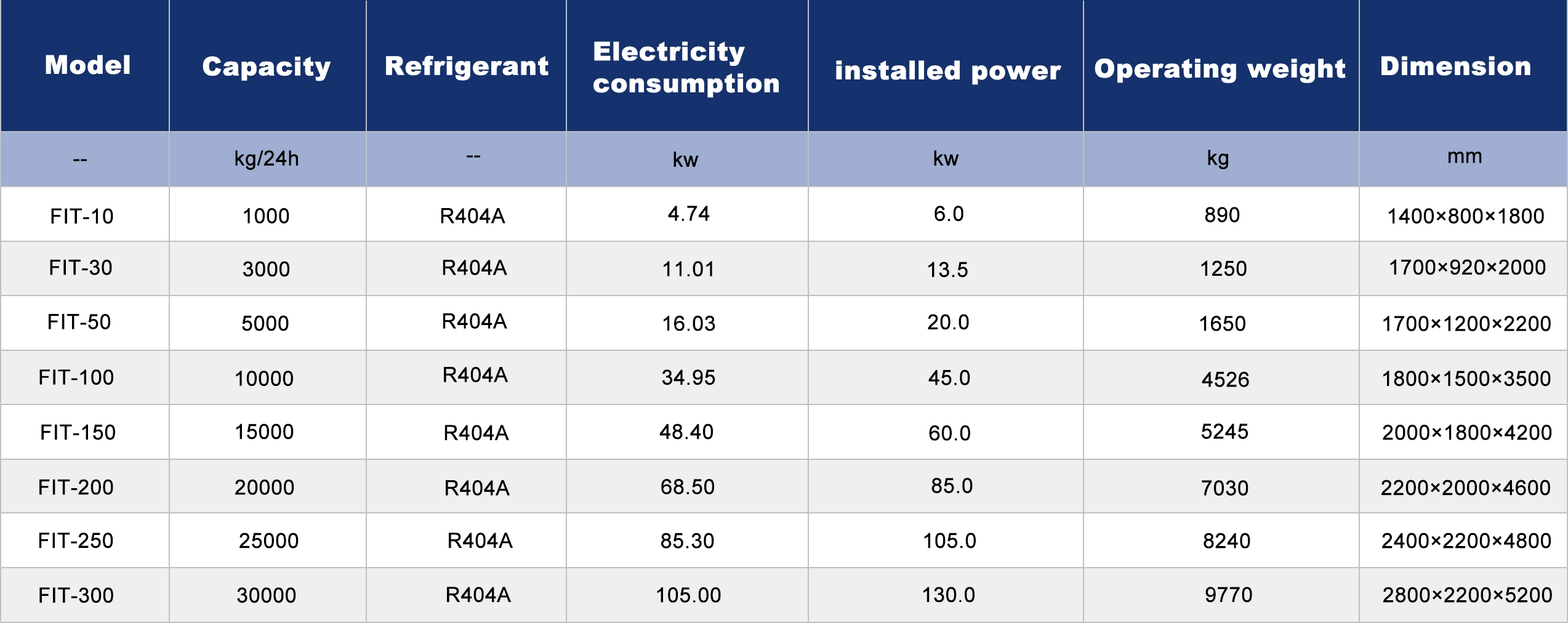

Focusun Refrigeration ( FOCUSUN) is preciously proud of the invention of the first global food type tube ice maker. We has mastered the core technology of tube ice machine manufacturing and has complete product processing capabilities. The equipment can produce 1-70 tons of ice per day, which can meet the needs of different customers. At the same time, we provides a one-stop solution for a fully automated large-scale edible tube ice production line to reduce labor costs, improve production efficiency and ensure the safety and hygiene of edible ice in all aspects.

Advantages of FOCUSUN tube ice plant innovative design for generator:

1. Innovative manufacturing artwork has been adopted. The ice stripping surface is smooth as a mirror. That has tremendously increased ice stripping efficiency and energy-efficiency ratio.

2. The ice cutter can be easily dismantled and replaced as a whole.

3. Compared with peers, FOCUSUN evaporator can form even water membrane more effectively.That makes more even and crystal ice tubes.

4. The upper and lower freezing water reservoir is openly structured, which helps a lot with cleaning and disinfection.

5. FOCUSUN ice plant adopts an optimized driving structural design, which ensures both simple structure and high reliability.

6. FOCUSUN customizes a reasonable design of ice plant suitable for convenient container transportation for oversea clients.

7. Deice just need 130-200s.
